Phospho-PDGF Receptor β (Tyr 740) Rabbit mAb

Catalog No.: F1500

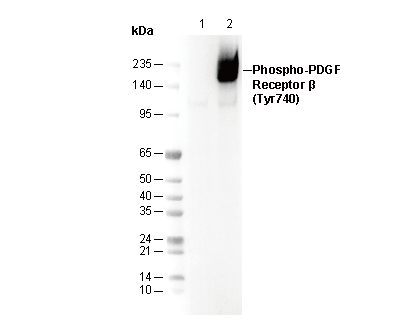

Lane 1: 3T3
Lane 2: 3T3 ( transfected with PDGF)

Experiment Essentials

Subcellular Location: Cell membrane, Cytoplasmic vesicle, Lysosome, Membrane.
WB
Recommending using RIPA/NP-40 Lysis Buffer to prepare lysates.
Recommended SDS-PAGE separating gel concentration: 5%.

Usage Information

Dilution
WB1:1000

Application
WB

Source
Rabbit

Reactivity
Mouse

Storage Buffer
PBS, pH 7.2+50% Glycerol+0.05% BSA+0.01% NaN₃

Storage (from the date of receipt)
-20°C (avoid freeze-thaw cycles), 2 years

Predicted MW
190 kDa

Positive Control	A431 (treated with EGF)
Negative Control

Exprimental Methods

WB
Experimental Protocol: Sample preparation 1. Tissue: Lyse the tissue sample by adding an appropriate volume of ice-cold RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail)，and homogenize the tissue at a low temperature or lyse it by sonication on ice, then incubate on ice for 30 minutes. 2. Adherent cell: Aspirate the culture medium and transfer the cells into an EP tube. Wash the cells with ice-cold PBS twice. Add an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail), sonicate to lyse the cells, and incubate on ice for 30 minutes. 3. Suspension cell: Transfer the culture medium to a pre-cooled centrifuge tube. Centrifuge and aspirate the supernatant. Wash the cells with ice-cold PBS twice.Add an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail), sonicate to lyse the cells, and incubate on ice for 30 minutes. 4. Place the lysate into a pre-cooled microcentrifuge tube. Centrifuge at 4°C for 15 min. Collect the supernatant; 5. Remove a small volume of lysate to determine the protein concentration; 6. Combine the lysate with protein loading buffer. Boil 20 µL sample under 95-100°C for 5 min. Centrifuge for 5 min after cool down on ice. Electrophoretic separation 1. According to the concentration of extracted protein, load appropriate amount of protein sample and marker onto SDS-PAGE gels for electrophoresis. Recommended separating gel (lower gel) concentration: 5%. Reference Table for Selecting SDS-PAGE Separation Gel Concentrations 2. Power up 80V for 30 minutes. Then the power supply is adjusted (110 V~150 V), the Marker is observed, and the electrophoresis can be stopped when the indicator band of the predyed protein Marker where the protein is located is properly separated. (Note that the current should not be too large when electrophoresis, too large current (more than 150 mA) will cause the temperature to rise, affecting the result of running glue. If high currents cannot be avoided, an ice bath can be used to cool the bath.) Transfer membrane 1. Take out the converter, soak the clip and consumables in the pre-cooled converter; 2. Activate PVDF membrane with methanol for 1 min and rinse with transfer buffer; 3. Install it in the order of "black edge of clip - sponge - filter paper - filter paper - glue -PVDF membrane - filter paper - filter paper - sponge - white edge of clip"; 4. The protein was electrotransferred to PVDF membrane. ( 0.45 µm PVDF membrane is recommended ) Reference Table for Selecting PVDF Membrane Pore Size Specifications Recommended conditions for wet transfer: 200 mA, 120 min. ( Note that the transfer conditions can be adjusted according to the protein size. For high-molecular-weight proteins, a higher current and longer transfer time are recommended. However, ensure that the transfer tank remains at a low temperature to prevent gel melting.) Block 1. After electrotransfer, wash the film with TBST at room temperature for 5 minutes; 2. Incubate the film in the blocking solution ( recommending 5% BSA solution) for 1 hour at room temperature; 3. Wash the film with TBST for 3 times, 5 minutes each time. Antibody incubation 1. Use 5% skim milk powder to prepare the primary antibody working liquid (recommended dilution ratio for primary antibody 1:1000), gently shake and incubate with the film at 4°C overnight; 2. Wash the film with TBST 3 times, 5 minutes each time; 3. Add the secondary antibody to the blocking solution and incubate with the film gently at room temperature for 1 hour; 4. After incubation, wash the film with TBST 3 times for 5 minutes each time. Antibody staining 1174. Add the prepared ECL luminescent substrate (or select other color developing substrate according to the second antibody) and mix evenly; 2. Incubate with the film for 1 minute, remove excess substrate (keep the film moist), wrap with plastic film, and expose in the imaging system.

Experimental Protocol:

Sample preparation

1. Tissue: Lyse the tissue sample by adding an appropriate volume of ice-cold RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail)，and homogenize the tissue at a low temperature or lyse it by sonication on ice, then incubate on ice for 30 minutes.

2. Adherent cell: Aspirate the culture medium and transfer the cells into an EP tube. Wash the cells with ice-cold PBS twice. Add an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail), sonicate to lyse the cells, and incubate on ice for 30 minutes.

3. Suspension cell: Transfer the culture medium to a pre-cooled centrifuge tube. Centrifuge and aspirate the supernatant. Wash the cells with ice-cold PBS twice.Add an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail), sonicate to lyse the cells, and incubate on ice for 30 minutes.

4. Place the lysate into a pre-cooled microcentrifuge tube. Centrifuge at 4°C for 15 min. Collect the supernatant;

5. Remove a small volume of lysate to determine the protein concentration;

6. Combine the lysate with protein loading buffer. Boil 20 µL sample under 95-100°C for 5 min. Centrifuge for 5 min after cool down on ice.

Electrophoretic separation

1. According to the concentration of extracted protein, load appropriate amount of protein sample and marker onto SDS-PAGE gels for electrophoresis. Recommended separating gel (lower gel) concentration: 5%. Reference Table for Selecting SDS-PAGE Separation Gel Concentrations

2. Power up 80V for 30 minutes. Then the power supply is adjusted (110 V~150 V), the Marker is observed, and the electrophoresis can be stopped when the indicator band of the predyed protein Marker where the protein is located is properly separated. (Note that the current should not be too large when electrophoresis, too large current (more than 150 mA) will cause the temperature to rise, affecting the result of running glue. If high currents cannot be avoided, an ice bath can be used to cool the bath.)

Transfer membrane

1. Take out the converter, soak the clip and consumables in the pre-cooled converter;

2. Activate PVDF membrane with methanol for 1 min and rinse with transfer buffer;

3. Install it in the order of "black edge of clip - sponge - filter paper - filter paper - glue -PVDF membrane - filter paper - filter paper - sponge - white edge of clip";

4. The protein was electrotransferred to PVDF membrane. ( 0.45 µm PVDF membrane is recommended ) Reference Table for Selecting PVDF Membrane Pore Size Specifications

Recommended conditions for wet transfer: 200 mA, 120 min.

( Note that the transfer conditions can be adjusted according to the protein size. For high-molecular-weight proteins, a higher current and longer transfer time are recommended. However, ensure that the transfer tank remains at a low temperature to prevent gel melting.)

Block

1. After electrotransfer, wash the film with TBST at room temperature for 5 minutes;

2. Incubate the film in the blocking solution ( recommending 5% BSA solution) for 1 hour at room temperature;

3. Wash the film with TBST for 3 times, 5 minutes each time.

Antibody incubation

1. Use 5% skim milk powder to prepare the primary antibody working liquid (recommended dilution ratio for primary antibody 1:1000), gently shake and incubate with the film at 4°C overnight;

2. Wash the film with TBST 3 times, 5 minutes each time;

3. Add the secondary antibody to the blocking solution and incubate with the film gently at room temperature for 1 hour;

4. After incubation, wash the film with TBST 3 times for 5 minutes each time.

Antibody staining

1174. Add the prepared ECL luminescent substrate (or select other color developing substrate according to the second antibody) and mix evenly;

2. Incubate with the film for 1 minute, remove excess substrate (keep the film moist), wrap with plastic film, and expose in the imaging system.

Datasheet & SDS

Biological Description

Specificity
Phospho-PDGF Receptor β (Tyr740) Rabbit mAb detects endogenous levels of PDGF receptor β only when phosphorylated at tyrosine 740.

Uniprot ID
P09619

Clone
M18D12

Background
The platelet-derived growth factor (PDGF) family comprises several disulfide-bonded dimeric isoforms: PDGF-AA, PDGF-AB, PDGF-BB, PDGF-CC, and PDGF-DD. These isoforms bind specifically to two related receptor tyrosine kinases, PDGF receptor α (PDGFRα) and PDGF receptor β (PDGFRβ), in distinct patterns. PDGFRα homodimers interact with all PDGF isoforms except those containing PDGF-D, while PDGFRβ homodimers bind PDGF-BB, PDGF-DD, and the PDGF-AB heterodimer. The heterodimeric PDGF receptor α/β recognizes PDGF-B, PDGF-C, and PDGF-D homodimers, as well as the PDGF-AB heterodimer. Ligand binding induces receptor dimerization and autophosphorylation, enabling the recruitment and activation of cytoplasmic signaling molecules containing SH2 domains, such as GRB2, Src, GAP, PI3K, PLCγ, and NCK. These activated receptors initiate various signaling cascades that regulate critical cellular processes, including cell proliferation, actin cytoskeleton reorganization, migration, and differentiation. Notably, Tyr740 in PDGFRβ is essential for its activation of PI3K.

Background

The platelet-derived growth factor (PDGF) family comprises several disulfide-bonded dimeric isoforms: PDGF-AA, PDGF-AB, PDGF-BB, PDGF-CC, and PDGF-DD. These isoforms bind specifically to two related receptor tyrosine kinases, PDGF receptor α (PDGFRα) and PDGF receptor β (PDGFRβ), in distinct patterns. PDGFRα homodimers interact with all PDGF isoforms except those containing PDGF-D, while PDGFRβ homodimers bind PDGF-BB, PDGF-DD, and the PDGF-AB heterodimer. The heterodimeric PDGF receptor α/β recognizes PDGF-B, PDGF-C, and PDGF-D homodimers, as well as the PDGF-AB heterodimer. Ligand binding induces receptor dimerization and autophosphorylation, enabling the recruitment and activation of cytoplasmic signaling molecules containing SH2 domains, such as GRB2, Src, GAP, PI3K, PLCγ, and NCK. These activated receptors initiate various signaling cascades that regulate critical cellular processes, including cell proliferation, actin cytoskeleton reorganization, migration, and differentiation. Notably, Tyr740 in PDGFRβ is essential for its activation of PI3K.

References
[1] Bergsten E, et al. Nat Cell Biol. 2001 May;3(5):512-6. [2] Kashishian A, et al. EMBO J. 1992 Apr;11(4):1373-82.

Reference Table for Selecting PVDF Membrane Pore Size Specifications

Protein Size (kDa)	PVDF Transfer Membrane Pore Size (μm)
< 10	0.22
10-20	0.22
20-30	0.45
30-45	0.45
45-70	0.45
80-100	0.45
100-140	0.45
> 140	0.45

Tech Support

Answers to questions you may have can be found in the inhibitor handling instructions. Topics include how to prepare stock solutions, how to store inhibitors, and issues that need special attention for cell-based assays and animal experiments.

Handling Instructions

Tel: +1-832-582-8158 Ext:3
If you have any other enquiries, please leave a message.

* Indicates a Required Field

Protein Size (kDa)	Separating Gel Percentage
4-40	20%
12-45	15%
10-70	12.5%
15-100	10%
25-100	8%
60-210	5%
