NMDA Receptor 1 (GluN1) Antibody [D10D12]

Cat.No.: F0486

Application: Reactivity: Human, Mouse, Rat

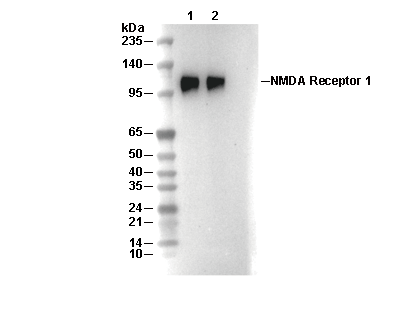

Lane 1: Mouse brain, Lane 2: Rat brain

Experiment Essentials

WB
Recommended SDS-PAGE separating gel concentration: 5%.

Usage Information

Dilution
WB1:1000 IP1:50

Application
WB, IP

Reactivity
Human, Mouse, Rat

Source
Rabbit Monoclonal Antibody

Storage Buffer
PBS, pH 7.2+50% Glycerol+0.05% BSA+0.01% NaN3

Storage (from the date of receipt)
-20°C (avoid freeze-thaw cycles), 2 years

Predicted MW
120 kDa

Positive Control	Mouse brain; Rat brain
Negative Control

Exprimental Methods

WB
Experimental Protocol: Sample preparation 1. Tissue: Lyse the tissue sample by adding an appropriate volume of ice-cold RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail)，and homogenize the tissue at a low temperature. 2. Adherent cell: Aspirate the culture medium and wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min. 3. Suspension cell: Transfer the culture medium to a pre-cooled centrifuge tube. Centrifuge and aspirate the supernatant. Wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min. 4. Place the lysate into a pre-cooled microcentrifuge tube. Centrifuge at 4°C for 15 min. Collect the supernatant; 5. Remove a small volume of lysate to determine the protein concentration; 6. Combine the lysate with protein loading buffer. Boil 20 µL sample under 95-100°C for 5 min. Centrifuge for 5 min after cool down on ice. Electrophoretic separation 1. According to the concentration of extracted protein, load appropriate amount of protein sample and marker onto SDS-PAGE gels for electrophoresis. Recommended separating gel (lower gel) concentration: 5%. Reference Table for Selecting SDS-PAGE Separation Gel Concentrations 2. Power up 80V for 30 minutes. Then the power supply is adjusted (110 V~150 V), the Marker is observed, and the electrophoresis can be stopped when the indicator band of the predyed protein Marker where the protein is located is properly separated. (Note that the current should not be too large when electrophoresis, too large current (more than 150 mA) will cause the temperature to rise, affecting the result of running glue. If high currents cannot be avoided, an ice bath can be used to cool the bath.) Transfer membrane 1. Take out the converter, soak the clip and consumables in the pre-cooled converter; 2. Activate PVDF membrane with methanol for 1 min and rinse with transfer buffer; 3. Install it in the order of "black edge of clip - sponge - filter paper - filter paper - glue -PVDF membrane - filter paper - filter paper - sponge - white edge of clip"; 4. The protein was electrotransferred to PVDF membrane. ( 0.45 µm PVDF membrane is recommended ) Reference Table for Selecting PVDF Membrane Pore Size Specifications Recommended conditions for wet transfer: 200 mA, 120 min. ( Note that the transfer conditions can be adjusted according to the protein size. For high-molecular-weight proteins, a higher current and longer transfer time are recommended. However, ensure that the transfer tank remains at a low temperature to prevent gel melting.) Block 1. After electrotransfer, wash the film with TBST at room temperature for 5 minutes; 2. Incubate the film in the blocking solution for 1 hour at room temperature; 3. Wash the film with TBST for 3 times, 5 minutes each time. Antibody incubation 1. Use 5% skim milk powder to prepare the primary antibody working liquid (recommended dilution ratio for primary antibody 1:1000), gently shake and incubate with the film at 4°C overnight; 2. Wash the film with TBST 3 times, 5 minutes each time; 3. Add the secondary antibody to the blocking solution and incubate with the film gently at room temperature for 1 hour; 4. After incubation, wash the film with TBST 3 times for 5 minutes each time. Antibody staining 1. Add the prepared ECL luminescent substrate (or select other color developing substrate according to the second antibody) and mix evenly; 2. Incubate with the film for 1 minute, remove excess substrate (keep the film moist), wrap with plastic film, and expose in the imaging system.

Experimental Protocol:

Sample preparation

1. Tissue: Lyse the tissue sample by adding an appropriate volume of ice-cold RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail)，and homogenize the tissue at a low temperature.

2. Adherent cell: Aspirate the culture medium and wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min.

3. Suspension cell: Transfer the culture medium to a pre-cooled centrifuge tube. Centrifuge and aspirate the supernatant. Wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min.

4. Place the lysate into a pre-cooled microcentrifuge tube. Centrifuge at 4°C for 15 min. Collect the supernatant;

5. Remove a small volume of lysate to determine the protein concentration;

6. Combine the lysate with protein loading buffer. Boil 20 µL sample under 95-100°C for 5 min. Centrifuge for 5 min after cool down on ice.

Electrophoretic separation

1. According to the concentration of extracted protein, load appropriate amount of protein sample and marker onto SDS-PAGE gels for electrophoresis. Recommended separating gel (lower gel) concentration: 5%. Reference Table for Selecting SDS-PAGE Separation Gel Concentrations

2. Power up 80V for 30 minutes. Then the power supply is adjusted (110 V~150 V), the Marker is observed, and the electrophoresis can be stopped when the indicator band of the predyed protein Marker where the protein is located is properly separated. (Note that the current should not be too large when electrophoresis, too large current (more than 150 mA) will cause the temperature to rise, affecting the result of running glue. If high currents cannot be avoided, an ice bath can be used to cool the bath.)

Transfer membrane

1. Take out the converter, soak the clip and consumables in the pre-cooled converter;

2. Activate PVDF membrane with methanol for 1 min and rinse with transfer buffer;

3. Install it in the order of "black edge of clip - sponge - filter paper - filter paper - glue -PVDF membrane - filter paper - filter paper - sponge - white edge of clip";

4. The protein was electrotransferred to PVDF membrane. ( 0.45 µm PVDF membrane is recommended ) Reference Table for Selecting PVDF Membrane Pore Size Specifications

Recommended conditions for wet transfer: 200 mA, 120 min.

( Note that the transfer conditions can be adjusted according to the protein size. For high-molecular-weight proteins, a higher current and longer transfer time are recommended. However, ensure that the transfer tank remains at a low temperature to prevent gel melting.)

Block

1. After electrotransfer, wash the film with TBST at room temperature for 5 minutes;

2. Incubate the film in the blocking solution for 1 hour at room temperature;

3. Wash the film with TBST for 3 times, 5 minutes each time.

Antibody incubation

1. Use 5% skim milk powder to prepare the primary antibody working liquid (recommended dilution ratio for primary antibody 1:1000), gently shake and incubate with the film at 4°C overnight;

2. Wash the film with TBST 3 times, 5 minutes each time;

3. Add the secondary antibody to the blocking solution and incubate with the film gently at room temperature for 1 hour;

4. After incubation, wash the film with TBST 3 times for 5 minutes each time.

Antibody staining

1. Add the prepared ECL luminescent substrate (or select other color developing substrate according to the second antibody) and mix evenly;

2. Incubate with the film for 1 minute, remove excess substrate (keep the film moist), wrap with plastic film, and expose in the imaging system.

Datasheet & SDS

Biological Description

Specificity
NMDA Receptor 1 (GluN1) Antibody [D10D12] detects endogenous levels of total NMDA Receptor 1 (GluN1) protein.

Subcellular Location
Cell membrane, Membrane, Postsynaptic cell membrane, Synapse

Uniprot ID
Q05586

Clone
D10D12

Synonym(s)
amparnmdar

Background
NMDA Receptor 1 (GluN1) (N-Methyl-D-aspartate receptor subunit 1) is the obligatory glycine/D-serine-binding subunit present in all functional NMDA receptors, making it essential for receptor assembly and function in virtually all central neurons. Structurally, GluN1 consists of an extracellular amino-terminal domain (ATD) that regulates allosteric modulation, a bilobed agonist-binding domain (ABD) that binds glycine or D-serine, a transmembrane domain forming part of the ion channel pore, and an intracellular carboxyl-terminal domain (CTD) that interacts with scaffolding and signaling proteins such as PSD-95, calmodulin, and NF-L; alternative splicing of exons 5, 21, and 22 generates eight isoforms with distinct regulatory properties. Widely expressed across the CNS, GluN1 pairs with GluN2 (A–D) and sometimes GluN3 subunits to form heterotetrameric receptors whose properties depend on subunit composition. Functionally, GluN1-containing receptors act as ligand-gated ion channels that require both glutamate (binding to GluN2) and glycine/D-serine (binding to GluN1) for activation, and their voltage-dependent Mg²⁺ block and high Ca²⁺ permeability make them central to synaptic transmission, long-term potentiation, excitatory postsynaptic current duration, and activity-dependent synaptic plasticity underlying learning and memory.

Background

NMDA Receptor 1 (GluN1) (N-Methyl-D-aspartate receptor subunit 1) is the obligatory glycine/D-serine-binding subunit present in all functional NMDA receptors, making it essential for receptor assembly and function in virtually all central neurons. Structurally, GluN1 consists of an extracellular amino-terminal domain (ATD) that regulates allosteric modulation, a bilobed agonist-binding domain (ABD) that binds glycine or D-serine, a transmembrane domain forming part of the ion channel pore, and an intracellular carboxyl-terminal domain (CTD) that interacts with scaffolding and signaling proteins such as PSD-95, calmodulin, and NF-L; alternative splicing of exons 5, 21, and 22 generates eight isoforms with distinct regulatory properties. Widely expressed across the CNS, GluN1 pairs with GluN2 (A–D) and sometimes GluN3 subunits to form heterotetrameric receptors whose properties depend on subunit composition. Functionally, GluN1-containing receptors act as ligand-gated ion channels that require both glutamate (binding to GluN2) and glycine/D-serine (binding to GluN1) for activation, and their voltage-dependent Mg²⁺ block and high Ca²⁺ permeability make them central to synaptic transmission, long-term potentiation, excitatory postsynaptic current duration, and activity-dependent synaptic plasticity underlying learning and memory.

References
https://pubmed.ncbi.nlm.nih.gov/30037851/

Reference Table for Selecting PVDF Membrane Pore Size Specifications

Protein Size (kDa)	PVDF Transfer Membrane Pore Size (μm)
< 10	0.22
10-20	0.22
20-30	0.45
30-45	0.45
45-70	0.45
80-100	0.45
100-140	0.45
> 140	0.45

Tech Support

Handling Instructions

Tel: +1-832-582-8158 Ext:3

If you have any other enquiries, please leave a message.

Protein Size (kDa)	Separating Gel Percentage
4-40	20%
12-45	15%
10-70	12.5%
15-100	10%
25-100	8%
60-210	5%
