Phospho-p70 S6K (Thr421/Ser424) Antibody [E5J12]

Catalog No.: F2333

    Application: Reactivity:

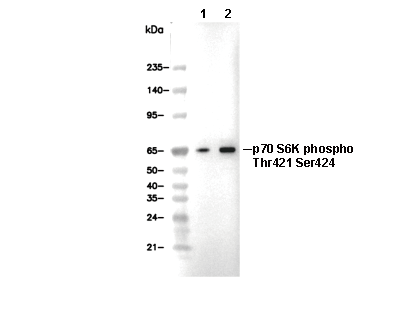

    • F2333-wb
      Lane 1: Rat2 (starvation, 24 h), Lane 2: Rat2 (starvation, 24 h; EGF, 200 ng/ml, 30 min)

    Usage Information

    Dilution
    1:500 - 1:3000
    1:100
    Application
    WB, IHC, ELISA
    Reactivity
    Human, Mouse, Rat
    Source
    Rabbit Monoclonal Antibody
    Storage Buffer
    PBS, pH 7.2+50% Glycerol+0.05% BSA+0.01% NaN3
    Storage (from the date of receipt)
    -20°C (avoid freeze-thaw cycles), 2 years
    Predicted MW
    59 kDa
    Positive Control Mouse intestine; Mouse heart; Rat pancreas; HeLa cell; Rat2 cell (EGF, 200 ng/ml)
    Negative Control

    Exprimental Methods

    WB
    Experimental Protocol:

    Sample preparation
    1. Tissue: Lyse the tissue sample by adding an appropriate volume of ice-cold RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail)，and homogenize the tissue at a low temperature.
    2. Adherent cell: Aspirate the culture medium and wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail) and put the sample on ice for 5 min.
    3. Suspension cell: Transfer the culture medium to a pre-cooled centrifuge tube. Centrifuge and aspirate the supernatant. Wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail, Phosphatase Inhibitor Cocktail) and put the sample on ice for 5 min.
    4. Place the lysate into a pre-cooled microcentrifuge tube. Centrifuge at 4°C for 15 min. Collect the supernatant;
    5. Remove a small volume of lysate to determine the protein concentration;
    6. Combine the lysate with protein loading buffer. Boil 20 µL sample under 95-100°C for 5 min. Centrifuge for 5 min after cool down on ice.

    Electrophoretic separation
    1. According to the concentration of extracted protein, load appropriate amount of protein sample and marker onto SDS-PAGE gels for electrophoresis. Recommended separating gel (lower gel) concentration: 10%. Reference Table for Selecting SDS-PAGE Separation Gel Concentrations
    2. Power up 80V for 30 minutes. Then the power supply is adjusted (110 V~150 V), the Marker is observed, and the electrophoresis can be stopped when the indicator band of the predyed protein Marker where the protein is located is properly separated. (Note that the current should not be too large when electrophoresis, too large current (more than 150 mA) will cause the temperature to rise, affecting the result of running glue. If high currents cannot be avoided, an ice bath can be used to cool the bath.)

    Transfer membrane
    1. Take out the converter, soak the clip and consumables in the pre-cooled converter;
    2. Activate PVDF membrane with methanol for 1 min and rinse with transfer buffer;
    3. Install it in the order of "black edge of clip - sponge - filter paper - filter paper - glue -PVDF membrane - filter paper - filter paper - sponge - white edge of clip";
    4. The protein was electrotransferred to PVDF membrane. ( 0.45 µm PVDF membrane is recommended ) Reference Table for Selecting PVDF Membrane Pore Size Specifications
    Recommended conditions for wet transfer: 200 mA, 120 min.
    ( Note that the transfer conditions can be adjusted according to the protein size. For high-molecular-weight proteins, a higher current and longer transfer time are recommended. However, ensure that the transfer tank remains at a low temperature to prevent gel melting.)

    Block
    1. After electrotransfer, wash the film with TBST at room temperature for 5 minutes;
    2. Incubate the film in the blocking solution ( recommending 5% BSA solution) for 1 hour at room temperature;
    3. Wash the film with TBST for 3 times, 5 minutes each time.

    Antibody incubation
    1. Use 5% skim milk powder to prepare the primary antibody working liquid (recommended dilution ratio for primary antibody 1:500), gently shake and incubate with the film at 4°C overnight;
    2. Wash the film with TBST 3 times, 5 minutes each time;
    3. Add the secondary antibody to the blocking solution and incubate with the film gently at room temperature for 1 hour;
    4. After incubation, wash the film with TBST 3 times for 5 minutes each time.

    Antibody staining
    1. Add the prepared ECL luminescent substrate (or select other color developing substrate according to the second antibody) and mix evenly;
    2. Incubate with the film for 1 minute, remove excess substrate (keep the film moist), wrap with plastic film, and expose in the imaging system.
    IHC
    Experimental Protocol：

    Deparaffinization/Rehydration
    1. Deparaffinize/hydrate sections:
    2. Incubate sections in three washes of xylene for 5 min each.
    3. Incubate sections in two washes of 100% ethanol for 10 min each.
    4. Incubate sections in two washes of 95% ethanol for 10 min each.
    5. Wash sections two times in dH2O for 5 min each.
    6.Antigen retrieval: For Citrate: Heat slides in a microwave submersed in 1X citrate unmasking solution until boiling is initiated; continue with 10 min at a sub-boiling temperature (95°-98°C). Cool slides on bench top for 30 min.

    Staining
    1. Wash sections in dH2O three times for 5 min each.
    2. Incubate sections in 3% hydrogen peroxide for 10 min.
    3. Wash sections in dH2O two times for 5 min each.
    4. Wash sections in wash buffer for 5 min.
    5. Block each section with 100–400 µl of blocking solution for 1 hr at room temperature.
    6. Remove blocking solution and add 100–400 µl primary antibody diluent in to each section. Incubate overnight at 4°C.
    7. Remove antibody solution and wash sections with wash buffer three times for 5 min each.
    8. Cover section with 1–3 drops HRPas needed. Incubate in a humidified chamber for 30 min at room temperature.
    9. Wash sections three times with wash buffer for 5 min each.
    10. Add DAB Chromogen Concentrate to DAB Diluent and mix well before use.
    11. Apply 100–400 µl DAB to each section and monitor closely. 1–10 min generally provides an acceptable staining intensity.
    12. Immerse slides in dH2O.
    13. If desired, counterstain sections with hematoxylin.
    14. Wash sections in dH2O two times for 5 min each.
    15. Dehydrate sections: Incubate sections in 95% ethanol two times for 10 sec each; Repeat in 100% ethanol, incubating sections two times for 10 sec each; Repeat in xylene, incubating sections two times for 10 sec each.
    16. Mount sections with coverslips and mounting medium.


    Datasheet & SDS

    Biological Description

    Specificity

    Phospho-p70 S6K (Thr421/Ser424) Antibody [E5J12] detects endogenous levels of p70 S6 kinase only when phosphorylated at Thr421 and Ser424 respectively.
    Subcellular Location
    Cytoplasm, Membrane, Mitochondrion, Mitochondrion outer membrane, Nucleus, Synapse, Synaptosome
    Uniprot ID
    P23443
    Clone
    E5J12
    Synonym(s)
    STK14A; RPS6KB1; Ribosomal protein S6 kinase beta-1; S6K-beta-1; S6K1; 70 kDa ribosomal protein S6 kinase 1; Ribosomal protein S6 kinase I; Serine/threonine-protein kinase 14A
    Background

    Phospho-p70 S6 kinase (Thr421/Ser424) refers to the phosphorylated form of p70S6K at threonine 421 and serine 424, residues located within its carboxy-terminal autoinhibitory domain. p70S6K, also called ribosomal S6 kinase 1 (S6K1), is a 70-kDa serine/threonine kinase belonging to the AGC kinase family and a key downstream effector of the PI3K/Akt/mTOR pathway. The full-length enzyme contains an N-terminal regulatory region, a catalytic kinase domain, and a C-terminal autoinhibitory segment that controls activity. p70S6K is ubiquitously expressed in mammalian tissues, with particularly high levels in metabolically active and proliferative cells, including fibroblasts, immune cells, and developing tissues. Phosphorylation of Thr421/Ser424 occurs in response to growth factors, cytokines such as GM-CSF, and mitogenic signals, and it relieves autoinhibition to permit subsequent phosphorylation at Thr389 and Thr229, critical steps for full activation. Functionally, phosphorylation at Thr421/Ser424 contributes to enhanced enzymatic activity of p70S6K, which in turn phosphorylates substrates such as ribosomal protein S6 and eIF4B, thereby promoting translation initiation, protein synthesis, cell cycle progression, growth, and proliferation. In hematopoietic cells like neutrophils, GM-CSF–induced phosphorylation at these residues integrates signals from both mTOR- and MAPK-dependent pathways, highlighting phospho-Thr421/Ser424 as a key regulatory checkpoint for S6K activation in inflammation, immune responses, and growth control.
    References
    • https://pubmed.ncbi.nlm.nih.gov/12740386/
    • https://pubmed.ncbi.nlm.nih.gov/19730801/
