CAR Antibody [F8M8] | Primary Antibodies

Application: Reactivity: Human

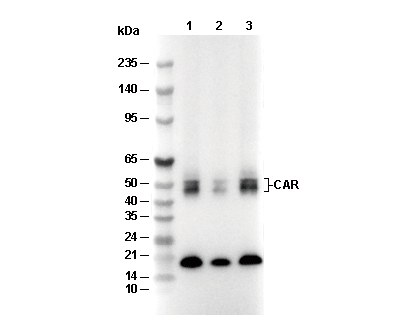

Lane 1: HCT-15, Lane 2: LoVo, Lane 3: HCC1419

Usage Information

Dilution
WB1:1000 IP1:100 IHC1:150 IF1:200

Application
WB, IP, IHC, IF

Reactivity
Human

Source
Rabbit Monoclonal Antibody

Storage Buffer
PBS, pH 7.2+50% Glycerol+0.05% BSA+0.01% NaN3

Storage (from the date of receipt)
-20°C (avoid freeze-thaw cycles), 2 years

Predicted MW
45-55 kDa

Positive Control	Human colon carcinoma; Human prostate carcinoma; Hep G2 cells; HCT-15 cells; LoVo cells; HCC1419 cells
Negative Control	K-562 cells; RD cells

Experimental Methods

WB
Experimental Protocol: Sample preparation 1. Tissue: Lyse the tissue sample by adding an appropriate volume of ice-cold RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail)，and homogenize the tissue at a low temperature. 2. Adherent cell: Aspirate the culture medium and wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min. 3. Suspension cell: Transfer the culture medium to a pre-cooled centrifuge tube. Centrifuge and aspirate the supernatant. Wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min. 4. Place the lysate into a pre-cooled microcentrifuge tube. Centrifuge at 4°C for 15 min. Collect the supernatant; 5. Remove a small volume of lysate to determine the protein concentration; 6. Combine the lysate with protein loading buffer. Boil 20 µL sample under 95-100°C for 5 min. Centrifuge for 5 min after cool down on ice. Electrophoretic separation 1. According to the concentration of extracted protein, load appropriate amount of protein sample and marker onto SDS-PAGE gels for electrophoresis. Recommended separating gel (lower gel) concentration: 10%. Reference Table for Selecting SDS-PAGE Separation Gel Concentrations 2. Power up 80V for 30 minutes. Then the power supply is adjusted (110 V~150 V), the Marker is observed, and the electrophoresis can be stopped when the indicator band of the predyed protein Marker where the protein is located is properly separated. (Note that the current should not be too large when electrophoresis, too large current (more than 150 mA) will cause the temperature to rise, affecting the result of running glue. If high currents cannot be avoided, an ice bath can be used to cool the bath.) Transfer membrane 1. Take out the converter, soak the clip and consumables in the pre-cooled converter; 2. Activate PVDF membrane with methanol for 1 min and rinse with transfer buffer; 3. Install it in the order of "black edge of clip - sponge - filter paper - filter paper - glue -PVDF membrane - filter paper - filter paper - sponge - white edge of clip"; 4. The protein was electrotransferred to PVDF membrane. ( 0.45 µm PVDF membrane is recommended ) Reference Table for Selecting PVDF Membrane Pore Size Specifications Recommended conditions for wet transfer: 200 mA, 120 min. ( Note that the transfer conditions can be adjusted according to the protein size. For high-molecular-weight proteins, a higher current and longer transfer time are recommended. However, ensure that the transfer tank remains at a low temperature to prevent gel melting.) Block 1. After electrotransfer, wash the film with TBST at room temperature for 5 minutes; 2. Incubate the film in the blocking solution for 1 hour at room temperature; 3. Wash the film with TBST for 3 times, 5 minutes each time. Antibody incubation 1. Use 5% skim milk powder to prepare the primary antibody working liquid (recommended dilution ratio for primary antibody 1:1000), gently shake and incubate with the film at 4°C overnight; 2. Wash the film with TBST 3 times, 5 minutes each time; 3. Add the secondary antibody to the blocking solution and incubate with the film gently at room temperature for 1 hour; 4. After incubation, wash the film with TBST 3 times for 5 minutes each time. Antibody staining 1. Add the prepared ECL luminescent substrate (or select other color developing substrate according to the second antibody) and mix evenly; 2. Incubate with the film for 1 minute, remove excess substrate (keep the film moist), wrap with plastic film, and expose in the imaging system.

WB

Experimental Protocol:

Sample preparation

1. Tissue: Lyse the tissue sample by adding an appropriate volume of ice-cold RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail)，and homogenize the tissue at a low temperature.

2. Adherent cell: Aspirate the culture medium and wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min.

3. Suspension cell: Transfer the culture medium to a pre-cooled centrifuge tube. Centrifuge and aspirate the supernatant. Wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min.

4. Place the lysate into a pre-cooled microcentrifuge tube. Centrifuge at 4°C for 15 min. Collect the supernatant;

5. Remove a small volume of lysate to determine the protein concentration;

6. Combine the lysate with protein loading buffer. Boil 20 µL sample under 95-100°C for 5 min. Centrifuge for 5 min after cool down on ice.

Electrophoretic separation

1. According to the concentration of extracted protein, load appropriate amount of protein sample and marker onto SDS-PAGE gels for electrophoresis. Recommended separating gel (lower gel) concentration: 10%. Reference Table for Selecting SDS-PAGE Separation Gel Concentrations

2. Power up 80V for 30 minutes. Then the power supply is adjusted (110 V~150 V), the Marker is observed, and the electrophoresis can be stopped when the indicator band of the predyed protein Marker where the protein is located is properly separated. (Note that the current should not be too large when electrophoresis, too large current (more than 150 mA) will cause the temperature to rise, affecting the result of running glue. If high currents cannot be avoided, an ice bath can be used to cool the bath.)

Transfer membrane

1. Take out the converter, soak the clip and consumables in the pre-cooled converter;

2. Activate PVDF membrane with methanol for 1 min and rinse with transfer buffer;

3. Install it in the order of "black edge of clip - sponge - filter paper - filter paper - glue -PVDF membrane - filter paper - filter paper - sponge - white edge of clip";

4. The protein was electrotransferred to PVDF membrane. ( 0.45 µm PVDF membrane is recommended ) Reference Table for Selecting PVDF Membrane Pore Size Specifications

Recommended conditions for wet transfer: 200 mA, 120 min.

( Note that the transfer conditions can be adjusted according to the protein size. For high-molecular-weight proteins, a higher current and longer transfer time are recommended. However, ensure that the transfer tank remains at a low temperature to prevent gel melting.)

Block

1. After electrotransfer, wash the film with TBST at room temperature for 5 minutes;

2. Incubate the film in the blocking solution for 1 hour at room temperature;

3. Wash the film with TBST for 3 times, 5 minutes each time.

Antibody incubation

1. Use 5% skim milk powder to prepare the primary antibody working liquid (recommended dilution ratio for primary antibody 1:1000), gently shake and incubate with the film at 4°C overnight;

2. Wash the film with TBST 3 times, 5 minutes each time;

3. Add the secondary antibody to the blocking solution and incubate with the film gently at room temperature for 1 hour;

4. After incubation, wash the film with TBST 3 times for 5 minutes each time.

Antibody staining

1. Add the prepared ECL luminescent substrate (or select other color developing substrate according to the second antibody) and mix evenly;

2. Incubate with the film for 1 minute, remove excess substrate (keep the film moist), wrap with plastic film, and expose in the imaging system.

IF
Experimental Protocol: Sample Preparation 1. Adherent Cells: Place a clean, sterile coverslip in a culture dish. Once the cells grow to near confluence as a monolayer, remove the coverslip for further use. 2. Suspension Cells: Seed the cells onto a clean, sterile slide coated with poly-L-lysine. 3. Frozen Sections: Allow the slide to thaw at room temperature. Wash it with pure water or PBS for 2 times, 3 minutes each time. 4. Paraffin Sections: Deparaffinization and rehydration. Wash the slide with pure water or PBS for 3 times, 3 minutes each time. Then perform antigen retrieval. Fixation 1. Fix the cell coverslips/spots or tissue sections at room temperature using a fixative such as 4% paraformaldehyde (4% PFA) for 10-15 minutes. 2. Wash the sample with PBS for 3 times, 3 minutes each time. Permeabilization 1.Add a detergent such as 0.1–0.3% Triton X-100 to the sample and incubate at room temperature for 10–20 minutes. (Note: This step is only required for intracellular antigens. For antigens expressed on the cell membrane, this step is unnecessary.) Wash the sample with PBS for 3 times, 3 minutes each time. Blocking Add blocking solution and incubate at room temperature for at least 1 hour. (Common blocking solutions include: serum from the same source as the secondary antibody, BSA, or goat serum.) Note: Ensure the sample remains moist during and after the blocking step to prevent drying, which can lead to high background. Immunofluorescence Staining (Day 1) 1. Remove the blocking solution and add the diluted primary antibody. 2. Incubate the sample in a humidified chamber at 4°C overnight. Immunofluorescence Staining (Day 2) 1. Remove the primary antibody and wash with PBST for 3 times, 5 minutes each time. 2. Add the diluted fluorescent secondary antibody and incubate in the dark at 4°C for 1–2 hours. 3. Remove the secondary antibody and wash with PBST for 3 times, 5 minutes each time. 4. Add diluted DAPI and incubate at room temperature in the dark for 5–10 minutes. 5. Wash with PBST for 3 times, 5 minutes each time. Mounting 1. Mount the sample with an anti-fade mounting medium. 2. Allow the slide to dry at room temperature overnight in the dark. 3. Store the slide in a slide storage box at 4°C, protected from light.

IF

Experimental Protocol:

Sample Preparation

1. Adherent Cells: Place a clean, sterile coverslip in a culture dish. Once the cells grow to near confluence as a monolayer, remove the coverslip for further use.

2. Suspension Cells: Seed the cells onto a clean, sterile slide coated with poly-L-lysine.

3. Frozen Sections: Allow the slide to thaw at room temperature. Wash it with pure water or PBS for 2 times, 3 minutes each time.

4. Paraffin Sections: Deparaffinization and rehydration. Wash the slide with pure water or PBS for 3 times, 3 minutes each time. Then perform antigen retrieval.

Fixation

1. Fix the cell coverslips/spots or tissue sections at room temperature using a fixative such as 4% paraformaldehyde (4% PFA) for 10-15 minutes.

2. Wash the sample with PBS for 3 times, 3 minutes each time.

Permeabilization

1.Add a detergent such as 0.1–0.3% Triton X-100 to the sample and incubate at room temperature for 10–20 minutes.

(Note: This step is only required for intracellular antigens. For antigens expressed on the cell membrane, this step is unnecessary.)

Wash the sample with PBS for 3 times, 3 minutes each time.

Blocking

Add blocking solution and incubate at room temperature for at least 1 hour. (Common blocking solutions include: serum from the same source as the secondary antibody, BSA, or goat serum.)

Note: Ensure the sample remains moist during and after the blocking step to prevent drying, which can lead to high background.

Immunofluorescence Staining (Day 1)

1. Remove the blocking solution and add the diluted primary antibody.

2. Incubate the sample in a humidified chamber at 4°C overnight.

Immunofluorescence Staining (Day 2)

1. Remove the primary antibody and wash with PBST for 3 times, 5 minutes each time.

2. Add the diluted fluorescent secondary antibody and incubate in the dark at 4°C for 1–2 hours.

3. Remove the secondary antibody and wash with PBST for 3 times, 5 minutes each time.

4. Add diluted DAPI and incubate at room temperature in the dark for 5–10 minutes.

5. Wash with PBST for 3 times, 5 minutes each time.

Mounting

1. Mount the sample with an anti-fade mounting medium.

2. Allow the slide to dry at room temperature overnight in the dark.

3. Store the slide in a slide storage box at 4°C, protected from light.

IHC
Experimental Protocol： Deparaffinization/Rehydration 1. Deparaffinize/hydrate sections: 2. Incubate sections in three washes of xylene for 5 min each. 3. Incubate sections in two washes of 100% ethanol for 10 min each. 4. Incubate sections in two washes of 95% ethanol for 10 min each. 5. Wash sections two times in dH2O for 5 min each. 6.Antigen retrieval: For Citrate: Heat slides in a microwave submersed in 1X citrate unmasking solution until boiling is initiated; continue with 10 min at a sub-boiling temperature (95°-98°C). Cool slides on bench top for 30 min. Staining 1. Wash sections in dH2O three times for 5 min each. 2. Incubate sections in 3% hydrogen peroxide for 10 min. 3. Wash sections in dH2O two times for 5 min each. 4. Wash sections in wash buffer for 5 min. 5. Block each section with 100–400 µl of blocking solution for 1 hr at room temperature. 6. Remove blocking solution and add 100–400 µl primary antibody diluent in to each section. Incubate overnight at 4°C. 7. Remove antibody solution and wash sections with wash buffer three times for 5 min each. 8. Cover section with 1–3 drops HRPas needed. Incubate in a humidified chamber for 30 min at room temperature. 9. Wash sections three times with wash buffer for 5 min each. 10. Add DAB Chromogen Concentrate to DAB Diluent and mix well before use. 11. Apply 100–400 µl DAB to each section and monitor closely. 1–10 min generally provides an acceptable staining intensity. 12. Immerse slides in dH2O. 13. If desired, counterstain sections with hematoxylin. 14. Wash sections in dH2O two times for 5 min each. 15. Dehydrate sections: Incubate sections in 95% ethanol two times for 10 sec each; Repeat in 100% ethanol, incubating sections two times for 10 sec each; Repeat in xylene, incubating sections two times for 10 sec each. 16. Mount sections with coverslips and mounting medium.

IHC

Experimental Protocol：

Deparaffinization/Rehydration

1. Deparaffinize/hydrate sections:

2. Incubate sections in three washes of xylene for 5 min each.

3. Incubate sections in two washes of 100% ethanol for 10 min each.

4. Incubate sections in two washes of 95% ethanol for 10 min each.

5. Wash sections two times in dH2O for 5 min each.

6.Antigen retrieval: For Citrate: Heat slides in a microwave submersed in 1X citrate unmasking solution until boiling is initiated; continue with 10 min at a sub-boiling temperature (95°-98°C). Cool slides on bench top for 30 min.

Staining

1. Wash sections in dH2O three times for 5 min each.

2. Incubate sections in 3% hydrogen peroxide for 10 min.

3. Wash sections in dH2O two times for 5 min each.

4. Wash sections in wash buffer for 5 min.

5. Block each section with 100–400 µl of blocking solution for 1 hr at room temperature.

6. Remove blocking solution and add 100–400 µl primary antibody diluent in to each section. Incubate overnight at 4°C.

7. Remove antibody solution and wash sections with wash buffer three times for 5 min each.

8. Cover section with 1–3 drops HRPas needed. Incubate in a humidified chamber for 30 min at room temperature.

9. Wash sections three times with wash buffer for 5 min each.

10. Add DAB Chromogen Concentrate to DAB Diluent and mix well before use.

11. Apply 100–400 µl DAB to each section and monitor closely. 1–10 min generally provides an acceptable staining intensity.

12. Immerse slides in dH2O.

13. If desired, counterstain sections with hematoxylin.

14. Wash sections in dH2O two times for 5 min each.

15. Dehydrate sections: Incubate sections in 95% ethanol two times for 10 sec each; Repeat in 100% ethanol, incubating sections two times for 10 sec each; Repeat in xylene, incubating sections two times for 10 sec each.

16. Mount sections with coverslips and mounting medium.

Datasheet & SDS

Biological Description

Specificity
CAR Antibody [F8M8] detects endogenous levels of total CAR protein.

Subcellular Location
Cell junction, Cell membrane, Membrane, Secreted, Tight junction

Uniprot ID
P78310

Clone
F8M8

Synonym(s)
Coxsackievirus and adenovirus receptor; CAR; hCAR; CVB3-binding protein; Coxsackievirus B-adenovirus receptor; HCVADR; CXADR; CAR

Background
CAR, also known as CXADR, is a highly conserved single-pass transmembrane glycoprotein composed of 365 amino acids and serves as the primary receptor for coxsackie B viruses and adenovirus subgroups, mediating viral attachment. It also functions as an essential tight junction component in epithelial and endothelial barriers as well as in cardiomyocytes. CAR contains a 19-amino acid cleavable signal peptide, an N-terminal extracellular domain of 218 amino acids with a membrane-distal D1 domain that has a beta-sandwich IgV-like fold spanning amino acids 22 to 124 and mediates homophilic cis and trans dimerization via strand exchange, and a membrane-proximal D2 domain with IgC2-like beta-sheets A, B, F and C, E, G stabilized by disulfide bonds and a helix D region at amino acids 185 to 192 for partner binding. This is followed by a 21-amino acid transmembrane helix and a 107-amino acid cytoplasmic domain with a C-terminal PDZ-binding motif DSWV that interacts with ZO-1, MAGI-1, and LNX2, as well as tyrosine-based basolateral sorting signals for AP-1A/B clathrin trafficking. Homophilic adhesion via D1-D1 trans interactions maintains epithelial polarity and paracellular barrier integrity, as shown by ZO-1 colocalization, excluding apical diffusion. CAR can also bind heterophilically to JAML on leukocytes, activating gamma-delta T-cell PI3K and MAPK signaling, which releases TNFα and KGF for epithelial repair. In the Wnt/beta-catenin pathway, CAR overexpression leads to accumulation of cytosolic beta-catenin, inhibits GSK3β phosphorylation, and promotes nuclear TCF/LEF transcription, upregulating c-Myc and BMP4. In the heart, CAR stabilizes connexin-45 gap junctions via PDZ domain interactions, ensuring proper AV conduction. CAR is essential for blood-testis barrier integrity in Sertoli cells by anchoring spermatids at the apical ectoplasmic specialization, regulates leukocyte extravasation, and determines viral tropism. Conditional knockout of CAR disrupts intercalated discs, causing dilated cardiomyopathy. It is upregulated in squamous cell carcinoma, driving proliferation and invasion, and is a target in oncolytic adenovirus therapy, while loss of function is linked to heart failure and infertility.

Background

CAR, also known as CXADR, is a highly conserved single-pass transmembrane glycoprotein composed of 365 amino acids and serves as the primary receptor for coxsackie B viruses and adenovirus subgroups, mediating viral attachment. It also functions as an essential tight junction component in epithelial and endothelial barriers as well as in cardiomyocytes. CAR contains a 19-amino acid cleavable signal peptide, an N-terminal extracellular domain of 218 amino acids with a membrane-distal D1 domain that has a beta-sandwich IgV-like fold spanning amino acids 22 to 124 and mediates homophilic cis and trans dimerization via strand exchange, and a membrane-proximal D2 domain with IgC2-like beta-sheets A, B, F and C, E, G stabilized by disulfide bonds and a helix D region at amino acids 185 to 192 for partner binding. This is followed by a 21-amino acid transmembrane helix and a 107-amino acid cytoplasmic domain with a C-terminal PDZ-binding motif DSWV that interacts with ZO-1, MAGI-1, and LNX2, as well as tyrosine-based basolateral sorting signals for AP-1A/B clathrin trafficking. Homophilic adhesion via D1-D1 trans interactions maintains epithelial polarity and paracellular barrier integrity, as shown by ZO-1 colocalization, excluding apical diffusion. CAR can also bind heterophilically to JAML on leukocytes, activating gamma-delta T-cell PI3K and MAPK signaling, which releases TNFα and KGF for epithelial repair. In the Wnt/beta-catenin pathway, CAR overexpression leads to accumulation of cytosolic beta-catenin, inhibits GSK3β phosphorylation, and promotes nuclear TCF/LEF transcription, upregulating c-Myc and BMP4. In the heart, CAR stabilizes connexin-45 gap junctions via PDZ domain interactions, ensuring proper AV conduction. CAR is essential for blood-testis barrier integrity in Sertoli cells by anchoring spermatids at the apical ectoplasmic specialization, regulates leukocyte extravasation, and determines viral tropism. Conditional knockout of CAR disrupts intercalated discs, causing dilated cardiomyopathy. It is upregulated in squamous cell carcinoma, driving proliferation and invasion, and is a target in oncolytic adenovirus therapy, while loss of function is linked to heart failure and infertility.

References
https://pubmed.ncbi.nlm.nih.gov/12468544/ https://pubmed.ncbi.nlm.nih.gov/36674801/

Protein Size (kDa)	PVDF Transfer Membrane Pore Size (μm)
< 10	0.22
10-20	0.22
20-30	0.45
30-45	0.45
45-70	0.45
80-100	0.45
100-140	0.45
> 140	0.45

Tech Support

Handling Instructions

Tel: +1-832-582-8158 Ext:3

If you have any other enquiries, please leave a message.

Protein Size (kDa)	Separating Gel Percentage
4-40	20%
12-45	15%
10-70	12.5%
15-100	10%
25-100	8%
60-210	5%
