ANK-3 Antibody [M12B24]

Catalog No.: F3993

    Application: Reactivity:
    • F3993-wb

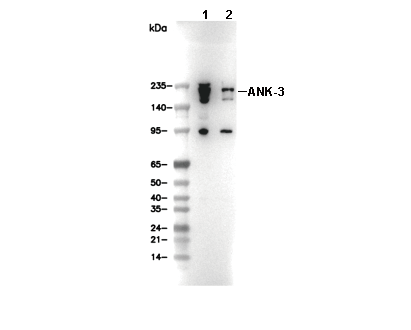

      Lane 1: Mouse brain, Lane 2: Rat brain

    Usage Information

    Dilution
    1:1000
    1:2000
    Application
    WB, IHC
    Reactivity
    Mouse, Rat, Human
    Source
    Rabbit Monoclonal Antibody
    Storage Buffer
    PBS, pH 7.2+50% Glycerol+0.05% BSA+0.01% NaN3
    Storage (from the date of receipt)
    -20°C (avoid freeze-thaw cycles), 2 years
    Observed MW
    99 kDa, 111 kDa, 121 kDa, 160 kDa, 188 kDa, 202 kDa, 204 kDa, 209 kDa, 214 kDa, 480 kDa
    *Why do the predicted and actual molecular weights differ?
    The following reasons may explain differences between the predicted and actual protein molecular weight.
    Positive Control Human kidney; Mouse kidney; Mouse cerebrum; Mouse brain; Rat cerebrum; Rat kidney; Rat brain; Rat cerebral cortex; SK-BR-3 cell
    Negative Control Human spleen; Mouse spleen; Rat spleen; HepG2 cell

    Exprimental Methods

    WB
    Experimental Protocol:

    Sample preparation
    1. Tissue: Lyse the tissue sample by adding an appropriate volume of ice-cold RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail)，and homogenize the tissue at a low temperature.
    2. Adherent cell: Aspirate the culture medium and wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min.
    3. Suspension cell: Transfer the culture medium to a pre-cooled centrifuge tube. Centrifuge and aspirate the supernatant. Wash the cells with ice-cold PBS twice. Lyse the cells by adding an appropriate volume of RIPA/NP-40 Lysis Buffer (containing Protease Inhibitor Cocktail) and put the sample on ice for 5 min.
    4. Place the lysate into a pre-cooled microcentrifuge tube. Centrifuge at 4°C for 15 min. Collect the supernatant;
    5. Remove a small volume of lysate to determine the protein concentration;
    6. Combine the lysate with protein loading buffer. Boil 20 µL sample under 95-100°C for 5 min. Centrifuge for 5 min after cool down on ice.

    Electrophoretic separation
    1. According to the concentration of extracted protein, load appropriate amount of protein sample and marker onto SDS-PAGE gels for electrophoresis. Recommended separating gel (lower gel) concentration: 10%. Reference Table for Selecting SDS-PAGE Separation Gel Concentrations
    2. Power up 80V for 30 minutes. Then the power supply is adjusted (110 V~150 V), the Marker is observed, and the electrophoresis can be stopped when the indicator band of the predyed protein Marker where the protein is located is properly separated. (Note that the current should not be too large when electrophoresis, too large current (more than 150 mA) will cause the temperature to rise, affecting the result of running glue. If high currents cannot be avoided, an ice bath can be used to cool the bath.)

    Transfer membrane
    1. Take out the converter, soak the clip and consumables in the pre-cooled converter;
    2. Activate PVDF membrane with methanol for 1 min and rinse with transfer buffer;
    3. Install it in the order of "black edge of clip - sponge - filter paper - filter paper - glue -PVDF membrane - filter paper - filter paper - sponge - white edge of clip";
    4. The protein was electrotransferred to PVDF membrane. ( 0.45 µm PVDF membrane is recommended ) Reference Table for Selecting PVDF Membrane Pore Size Specifications
    Recommended conditions for wet transfer: 200 mA, 120 min.
    ( Note that the transfer conditions can be adjusted according to the protein size. For high-molecular-weight proteins, a higher current and longer transfer time are recommended. However, ensure that the transfer tank remains at a low temperature to prevent gel melting.)

    Block
    1. After electrotransfer, wash the film with TBST at room temperature for 5 minutes;
    2. Incubate the film in the blocking solution for 1 hour at room temperature;
    3. Wash the film with TBST for 3 times, 5 minutes each time.

    Antibody incubation
    1. Use 5% skim milk powder to prepare the primary antibody working liquid (recommended dilution ratio for primary antibody 1:1000), gently shake and incubate with the film at 4°C overnight;
    2. Wash the film with TBST 3 times, 5 minutes each time;
    3. Add the secondary antibody to the blocking solution and incubate with the film gently at room temperature for 1 hour;
    4. After incubation, wash the film with TBST 3 times for 5 minutes each time.

    Antibody staining
    1. Add the prepared ECL luminescent substrate (or select other color developing substrate according to the second antibody) and mix evenly;
    2. Incubate with the film for 1 minute, remove excess substrate (keep the film moist), wrap with plastic film, and expose in the imaging system. (Exposure time of at least 60s is recommended)
    IHC
    Experimental Protocol：

    Deparaffinization/Rehydration
    1. Deparaffinize/hydrate sections:
    2. Incubate sections in three washes of xylene for 5 min each.
    3. Incubate sections in two washes of 100% ethanol for 10 min each.
    4. Incubate sections in two washes of 95% ethanol for 10 min each.
    5. Wash sections two times in dH2O for 5 min each.
    6.Antigen retrieval: For Citrate: Heat slides in a microwave submersed in 1X citrate unmasking solution until boiling is initiated; continue with 10 min at a sub-boiling temperature (95°-98°C). Cool slides on bench top for 30 min.

    Staining
    1. Wash sections in dH2O three times for 5 min each.
    2. Incubate sections in 3% hydrogen peroxide for 10 min.
    3. Wash sections in dH2O two times for 5 min each.
    4. Wash sections in wash buffer for 5 min.
    5. Block each section with 100–400 µl of blocking solution for 1 hr at room temperature.
    6. Remove blocking solution and add 100–400 µl primary antibody diluent in to each section. Incubate overnight at 4°C.
    7. Remove antibody solution and wash sections with wash buffer three times for 5 min each.
    8. Cover section with 1–3 drops HRPas needed. Incubate in a humidified chamber for 30 min at room temperature.
    9. Wash sections three times with wash buffer for 5 min each.
    10. Add DAB Chromogen Concentrate to DAB Diluent and mix well before use.
    11. Apply 100–400 µl DAB to each section and monitor closely. 1–10 min generally provides an acceptable staining intensity.
    12. Immerse slides in dH2O.
    13. If desired, counterstain sections with hematoxylin.
    14. Wash sections in dH2O two times for 5 min each.
    15. Dehydrate sections: Incubate sections in 95% ethanol two times for 10 sec each; Repeat in 100% ethanol, incubating sections two times for 10 sec each; Repeat in xylene, incubating sections two times for 10 sec each.
    16. Mount sections with coverslips and mounting medium.


    Datasheet & SDS

    Biological Description

    Specificity
    ANK-3 Antibody [M12B24] detects endogenous levels of total ANK-3 protein.
    Uniprot ID
    Q12955
    Clone
    M12B24
    Synonym(s)
    Ankyrin-3; ANK-3; Ankyrin-G; ANK3.
    Background
    Ankyrins comprise a family of large scaffolding proteins—Ankyrin-R, Ankyrin-B, and Ankyrin-G—encoded by the ANK1, ANK2, and ANK3 genes, respectively. These proteins function as essential adaptors that tether integral membrane proteins to the spectrin–actin cytoskeleton, thereby maintaining cellular architecture and facilitating signal transduction. ANK1 is primarily expressed in erythrocytes and also in the brain, where it organizes voltage-gated potassium channels. In contrast, ANK2 and ANK3 exhibit broader tissue distribution, including extensive expression in the central nervous system. Ankyrin-B (ANK2) is crucial for the proper localization of ion channels, and pathogenic variants are linked to cardiac arrhythmias and various neurodevelopmental disorders. Ankyrin-G (ANK3) serves as a master organizer at the axon initial segment and nodes of Ranvier, orchestrating action potential initiation and propagation. ANK3 is highly expressed in the brain, heart, and skeletal muscle, where it interacts with ion channels, cell adhesion molecules, and other membrane-associated proteins to regulate neuronal excitability and cardiac rhythm. Through these interactions, ANK3 contributes to both neurobiological signaling and cardiac function. Loss-of-function variants in ANK3 have been associated with autosomal recessive intellectual developmental disorder, highlighting its critical role in neurodevelopment and cellular physiology.
    References
    • https://pubmed.ncbi.nlm.nih.gov/40879451/
